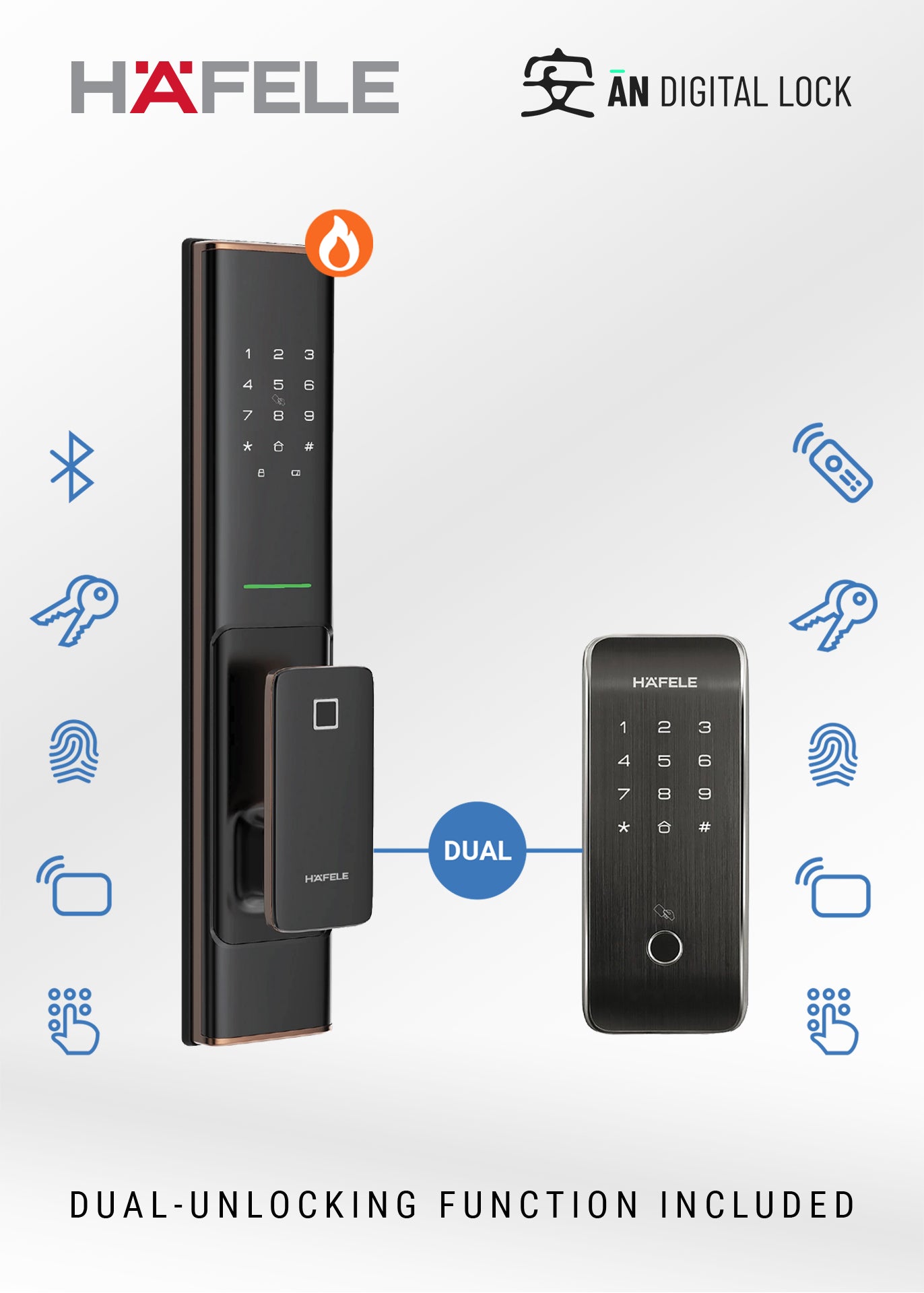

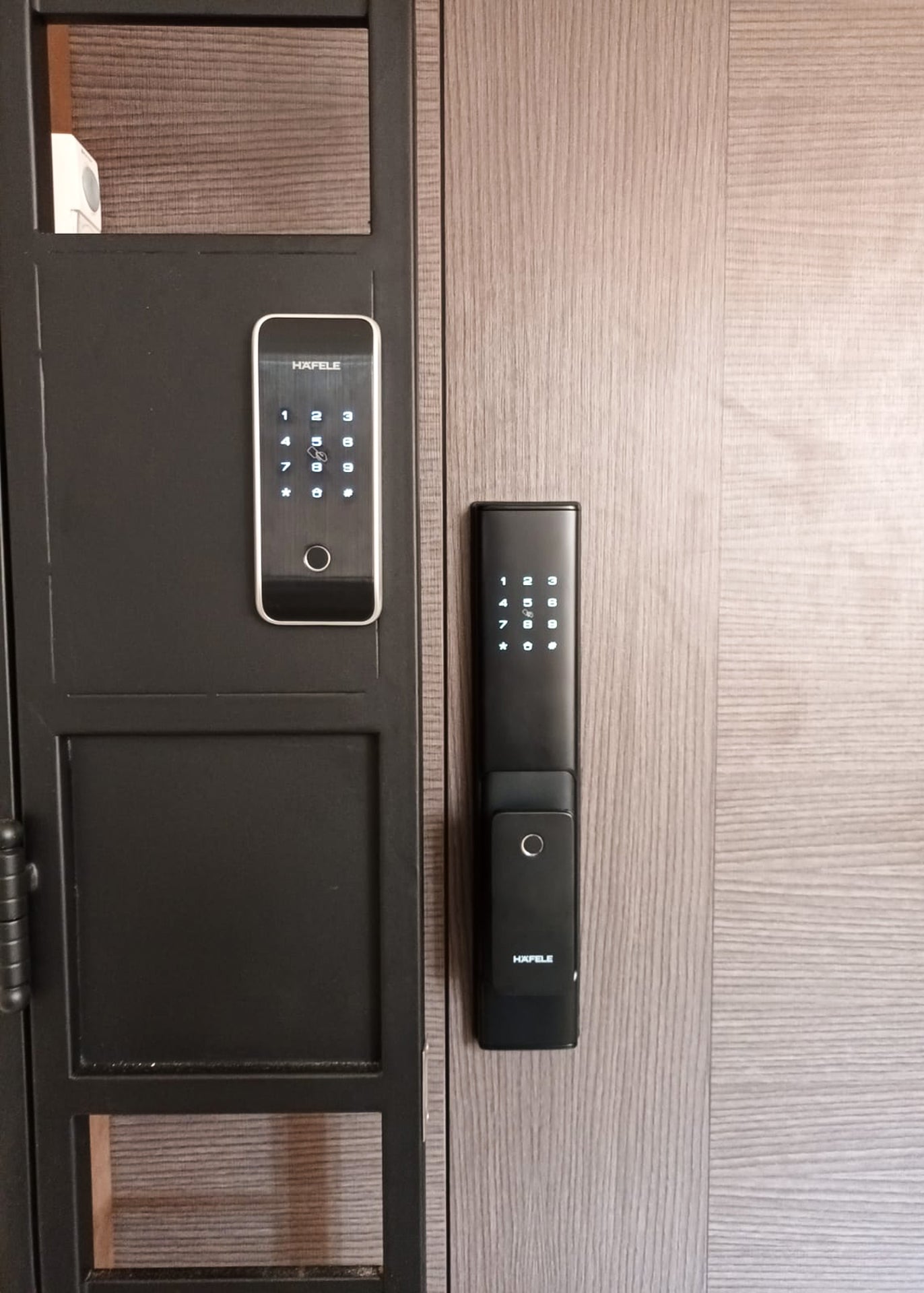

Hafele PP8100 Door Lock + Hafele GL5700 Gate Lock

Features

• Emergency warning system
• Panic release handle method
• One touch etiquette (Silent)
• Battery residual identification & Replacement time alarm function
• Double verification - combine 2-in-3 verification ways to unlock (fingerprint / RFID cards / pin code)
• Defense mode- if someone exits from inside, the lock will alarm 20 seconds
• Privacy function - When the double lock function is activated, the door cannot be opened for outside with user pin code, RFID cards or fingerprint, except with the master pin code or mechanical keys
• Prevent mischief and hacking - when entered the wrong user pin code / RFID card / fingerprint for 10 consecutive times, the lock is suspended for 5 minutes. While the lock is suspended, the system will alarm when you are trying to use the keypad.

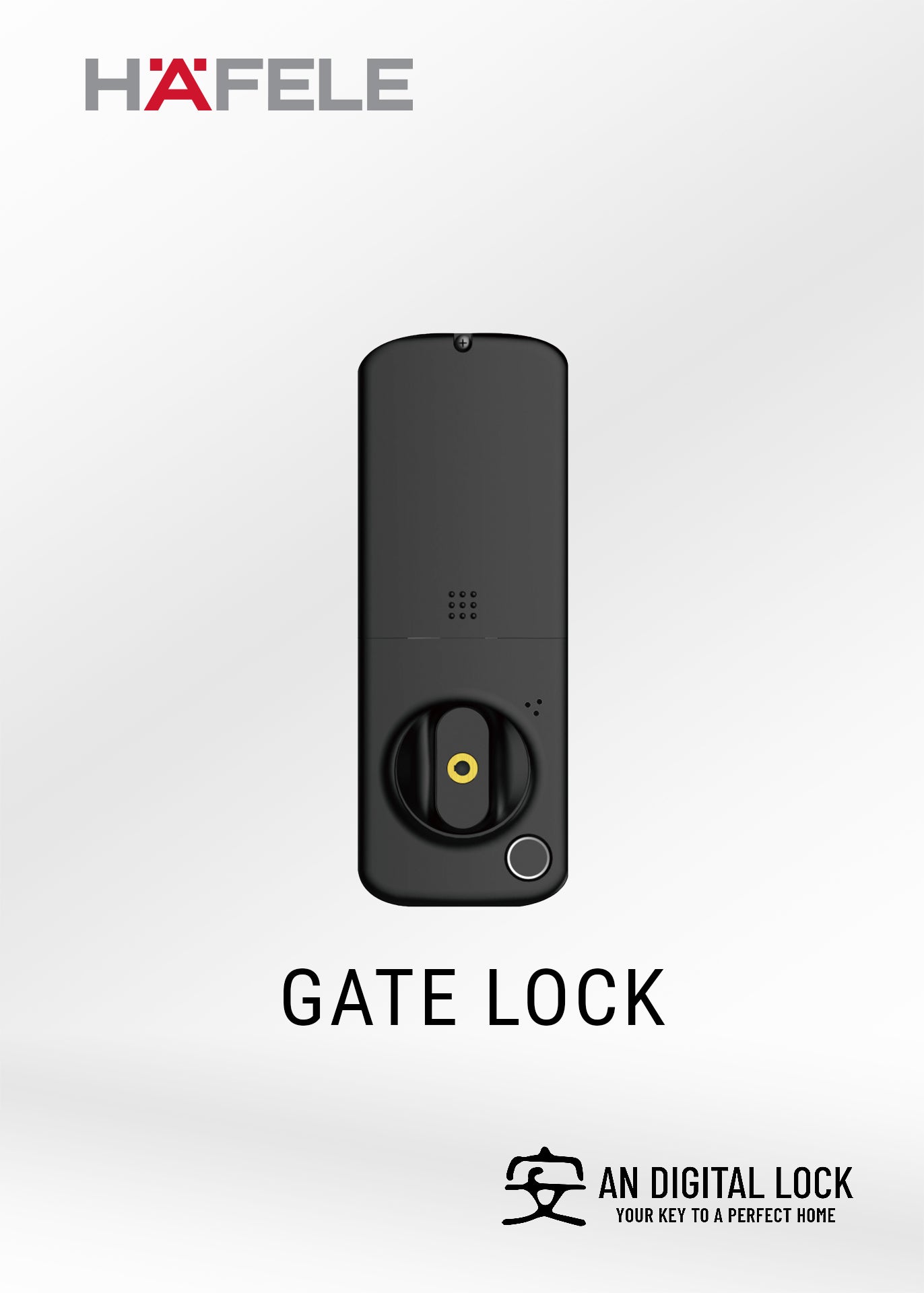

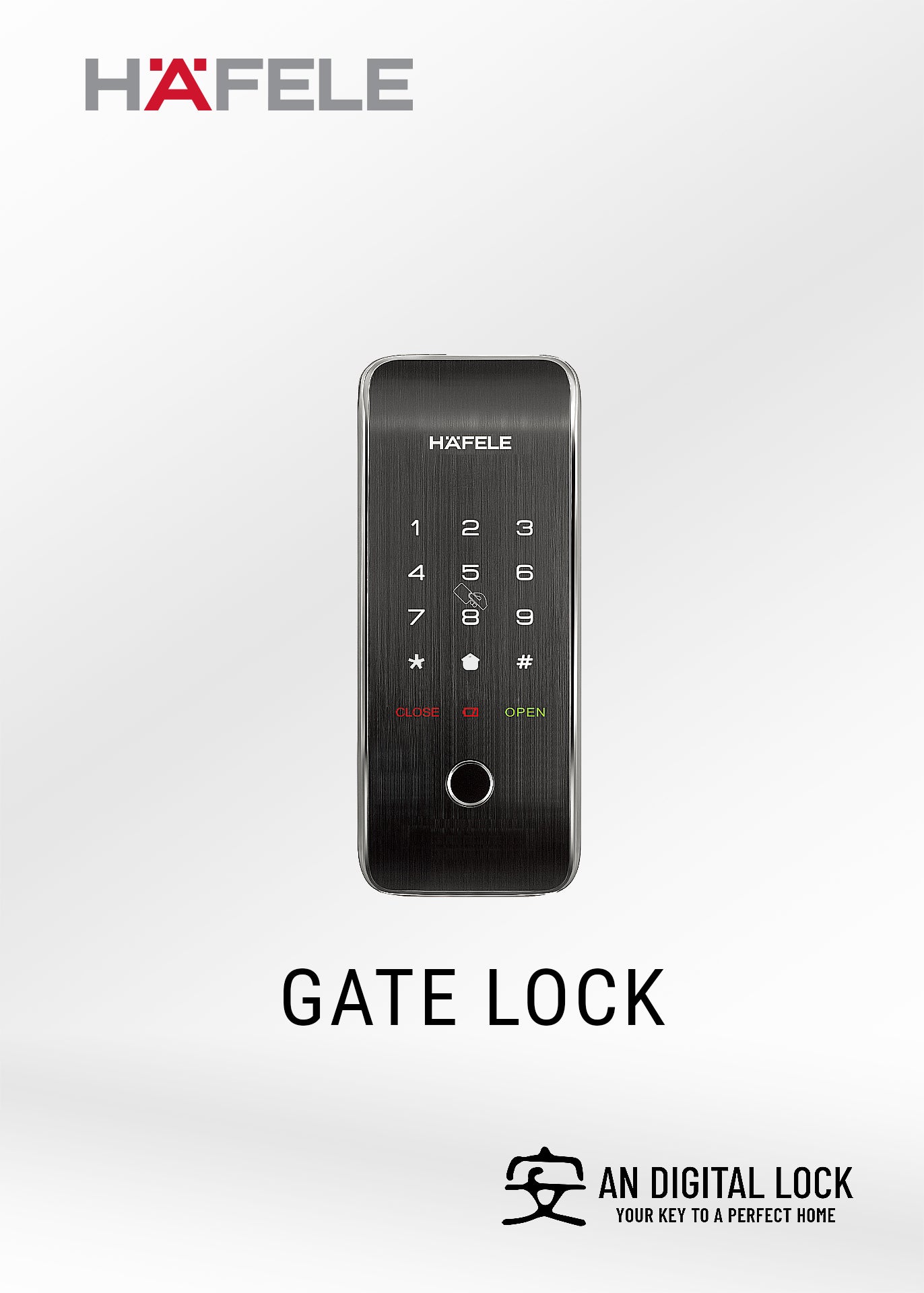

Hafele GL5700 Digital Gate Lock

The Hafele GL5700 is a rim-mounted digital gate lock that either replaces your existing handle lever or can be fitted above it if you’d rather retain gate handle.

The Hafele GL5700 includes 5-in-1 access:

• Fingerprint
• Pin code
• RFID card
• Mechanical key
• Remote Control

Specifications

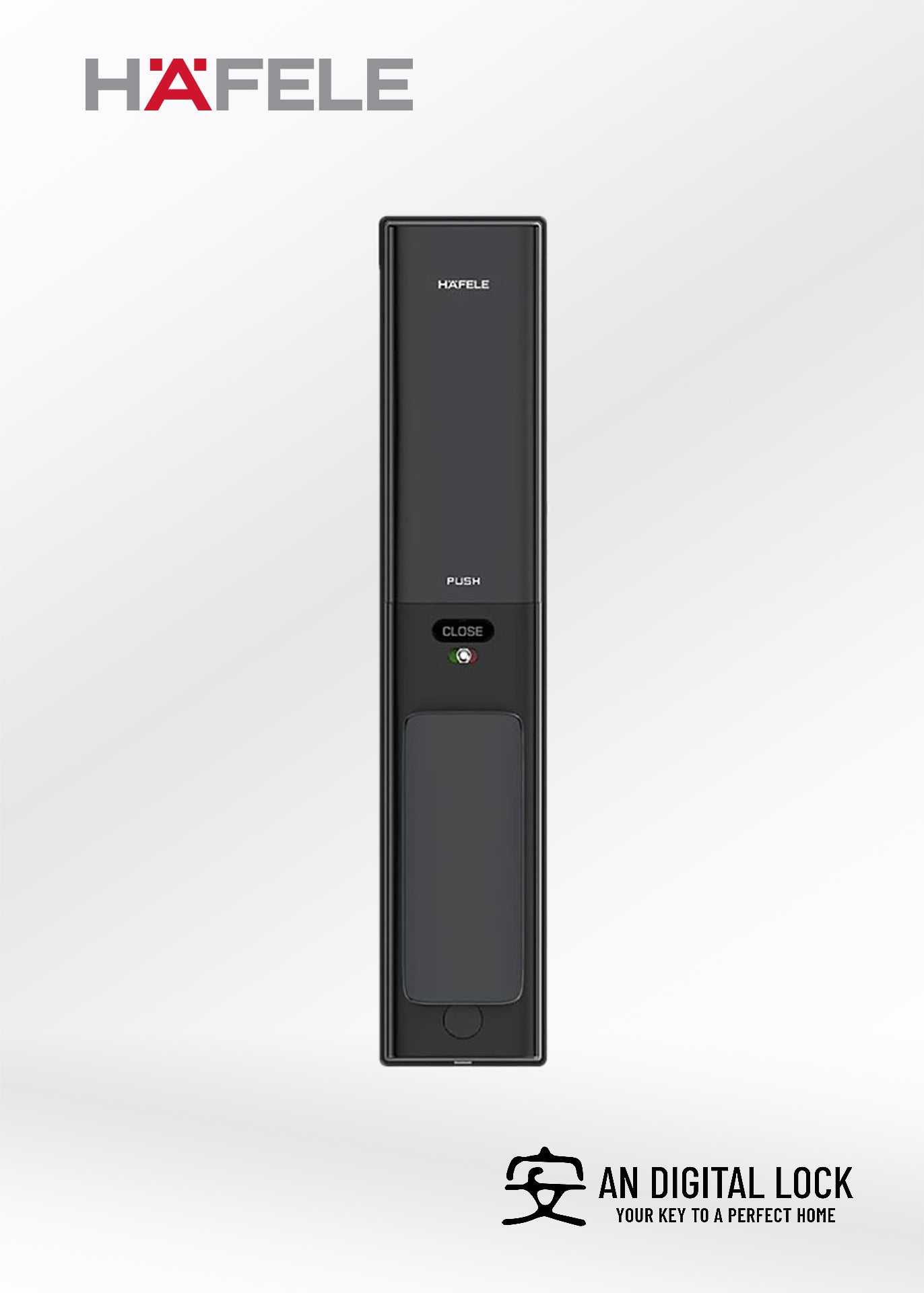

Hafele PP8100 Digital Lock

Dimensions (mm):

Front Body: 394 (L) 78.5 (W) x 76.5 (D) mm
Back Body: 394 (L) x 78.5 (W) x 69.5 (D) mm

Door to gate clearance required: 80 mm

Hafele GL5700 Digital Gate Lock

Dimensions (mm):

Front-body: 172 (L) x 71 (W) x 13 (D)
Back-body: 200 (L) x 77 (W) x 70 (D)

Door to gate clearance required: 75 mm

Requirements

Hafele PP8100 Digital Lock

Door to Gate clearance required:
≥ 155mm from door to gate (Back to Back)
≥ 80mm from door to gate (Opposite)

Hafele GL5700 Digital Gate Lock

Door to Gate clearance required:
≥ 155mm from door to gate (Back to Back)
≥ 75mm from door to gate (Opposite)
