Hafele GL5700 Digital Gate Lock

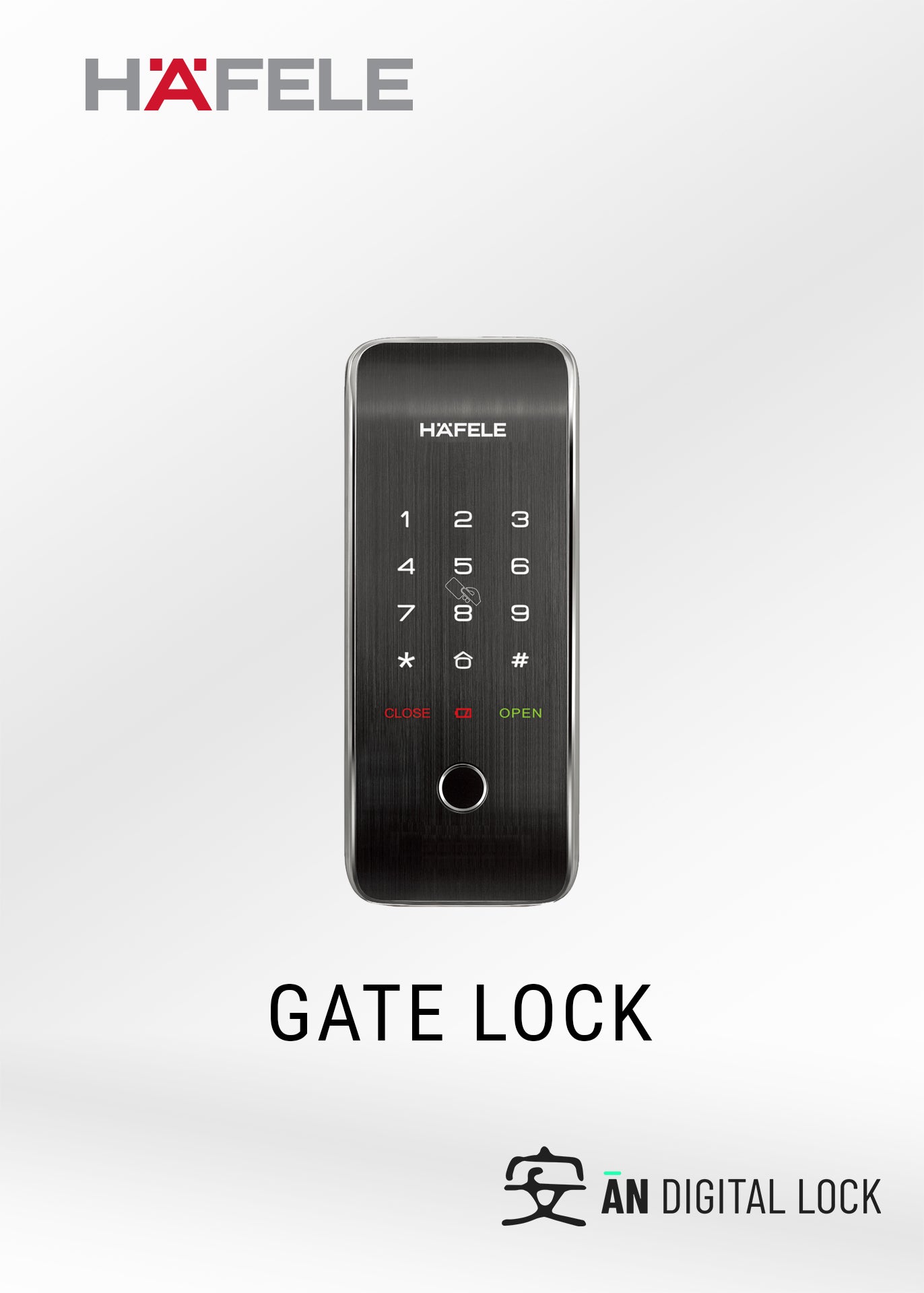

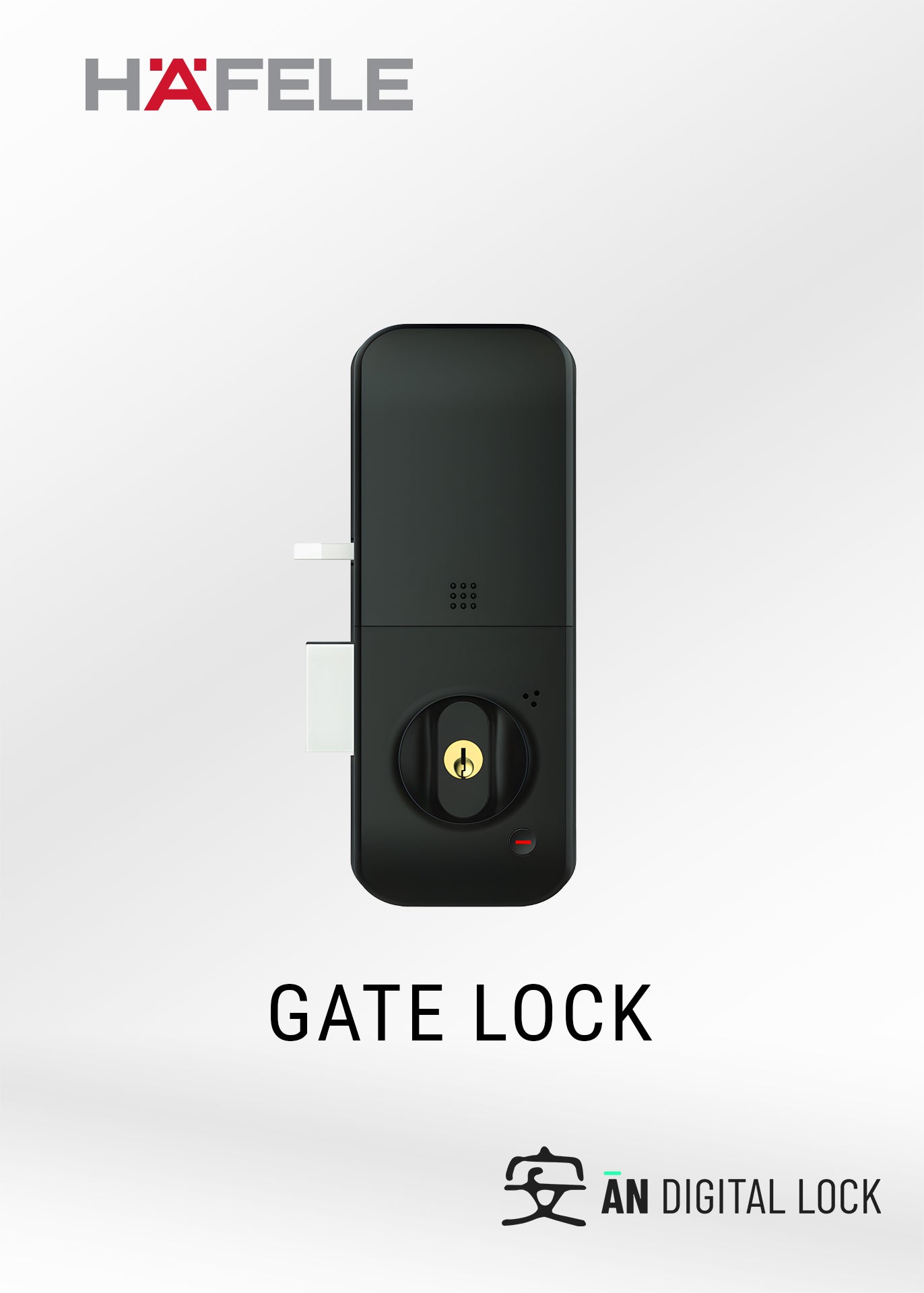

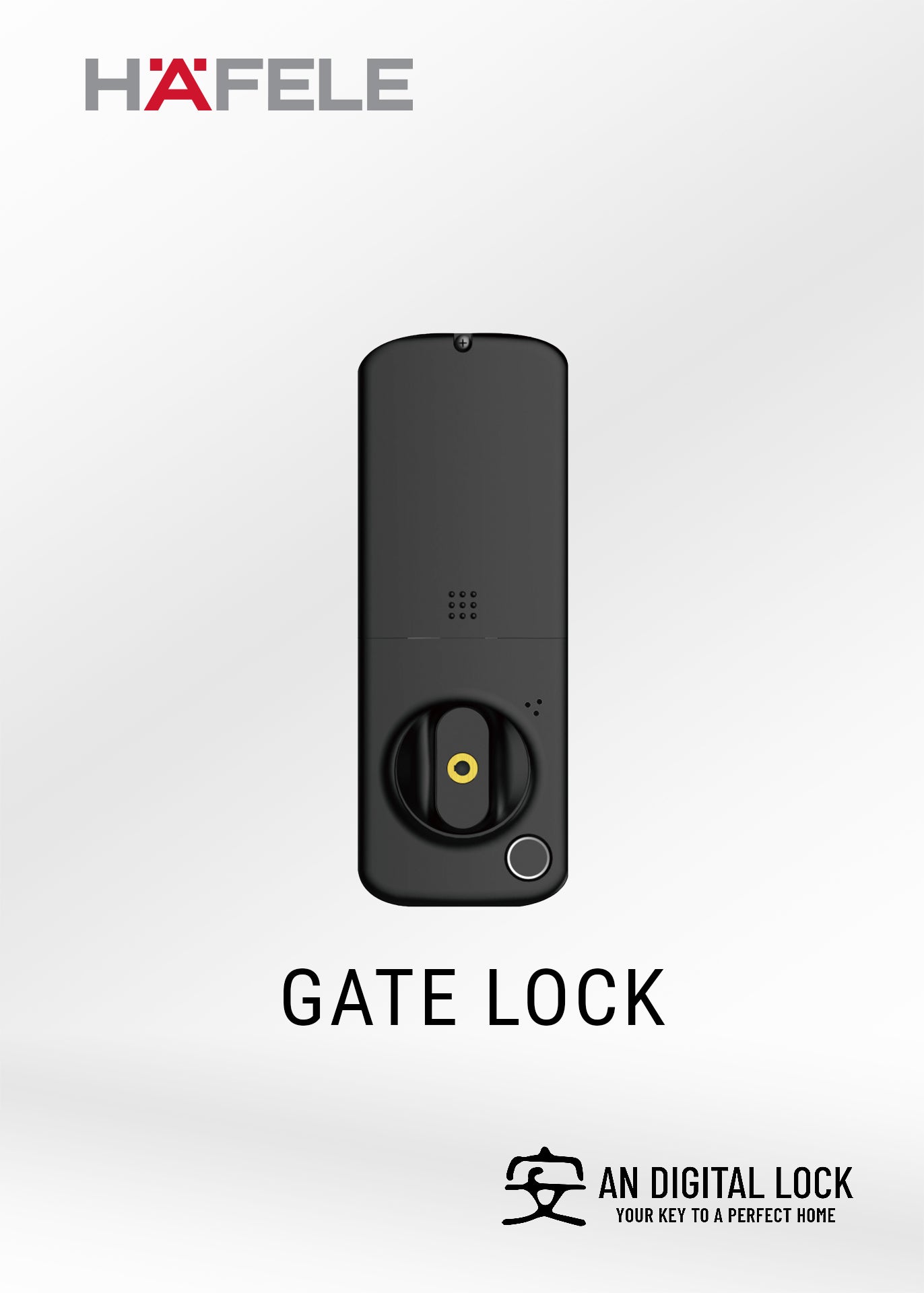

The Hafele GL5700 is a rim-mounted digital gate lock that either replaces your existing handle lever or can be fitted above it if you’d rather retain gate handle.
The Hafele GL5700 includes 6-in-1 access:
- Fingerprint
- Pin code
- RFID card
- Mechanical key
- Remote Control
- App
Features
Auto-locking/manual mode – auto-locks after each use or switch to manual when needed
Fake PIN / scramble PIN – enter extra digits or false codes to confuse onlookers
Defense locking – locks down after repeated wrong entries
Tamper/jam alarms & low-battery warnings
Emergency power – Micro USB port to jumpstart lock in case of drained battery
Specifications
| Material | AL + ABS |
| Dimension(mm) |
Front Body: 170 (L) x 71 (W) x 13 (D) mm Back Body: 200 (L) x 77 (W) x 70 (D) mm |
| Used for | HDB / Condo |
| Voice guide language | English |
| Applicative Door | Gates |
| Applicative Door Thickness | 25 - 40 mm |
| Color | Black |
| Type of lock body | Automatic Lock body |
| Unlocking way |
Fingerprint/Card/Password/Key/Remote Control/App |
| Master Password | 1 |
| User Password | 10 |
| Password length | 6-12 digits |
| Type of card | RFID |
| Card capacity | 100 |
| Type of FPG | Semi-conductor |
| Identification time | <0.5 sec |
| Fingerprints Capacity | 20 Front, 20 Back |
| Double Locking mode | Automatic |
| Power Supply | DC 6V 4 AA Battery |
| Emergency power supply | Micro USB |
| Mechanical cylinder&key | Yes |
| Anti panic | Yes |
| Open direction | Universal |
| Door to gate clearance required | 75 mm |
Dimensions (mm):
Front-body: 172 (L) x 71 (W) x 13 (D) mm
Back-body: 200 (L) x 77 (W) x 70 (D) mm
Door to gate clearance required: 75 mm
Requirements
Door to Gate clearance required:
≥ 145mm from door to gate (Back to Back)
≥ 75mm from door to gate (Opposite)
